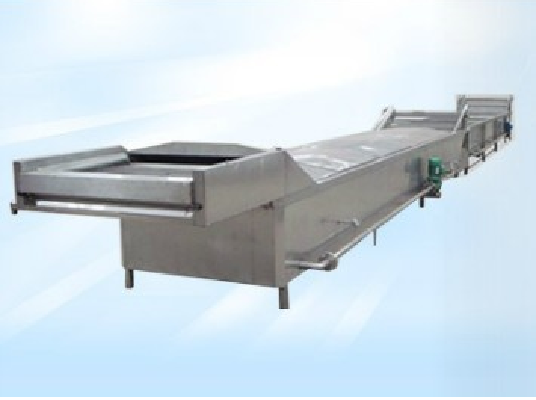

PAP series
Material; stainless steel
Height of the whole machine; adjustable
Conveyor belt speed can be arbitrarily adjusted; frequency conversion control
Sterilization time; 10-40min
Sterilization temperature; 65-95 degree can be adjusted
Cooling mode; normal temperature or forced ice water
Gas consumption; 0.5-1.0m3/h
Processing capacity; design according to customer requirements
Running speed; stepless speed regulation
Power; 3KW ice water cooling 22kw
Main material; stainless steel
Thickness; 3mm
Support material; industrial square (stainless steel)

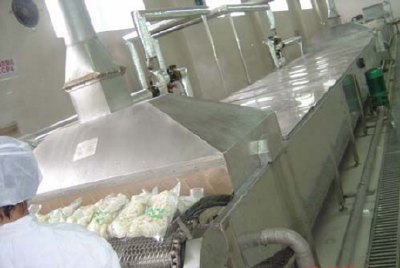

This product line used pasteurization process, pasteurization is suitable for glass bottles, tin cans and containers of products.
sterilization time
16-40min
sterilization temperature
65 degree -95 adjustable
Steam pressure
1-4kg
Processing capacity
Design according to user's requirement
Cooling mode
Normal temperature or forced ice water
running speed
Stepless speed regulation
Band width
500-2000mm
power
Room temperature cooling 3kw/ ice water cooling 22kw
Gas consumption
0.5-1.0m fand /h
Power Supply
380v/50hz
The machine features; continuous sterilization, to enter cooling box for rapid cooling, to as much as possible to maintain the food quality, the machine sets of sterilization, cooling in one, continuous and automatic production, and bags, bottled, boxed food sterilizing, cooling, drying line matching can be used for.
